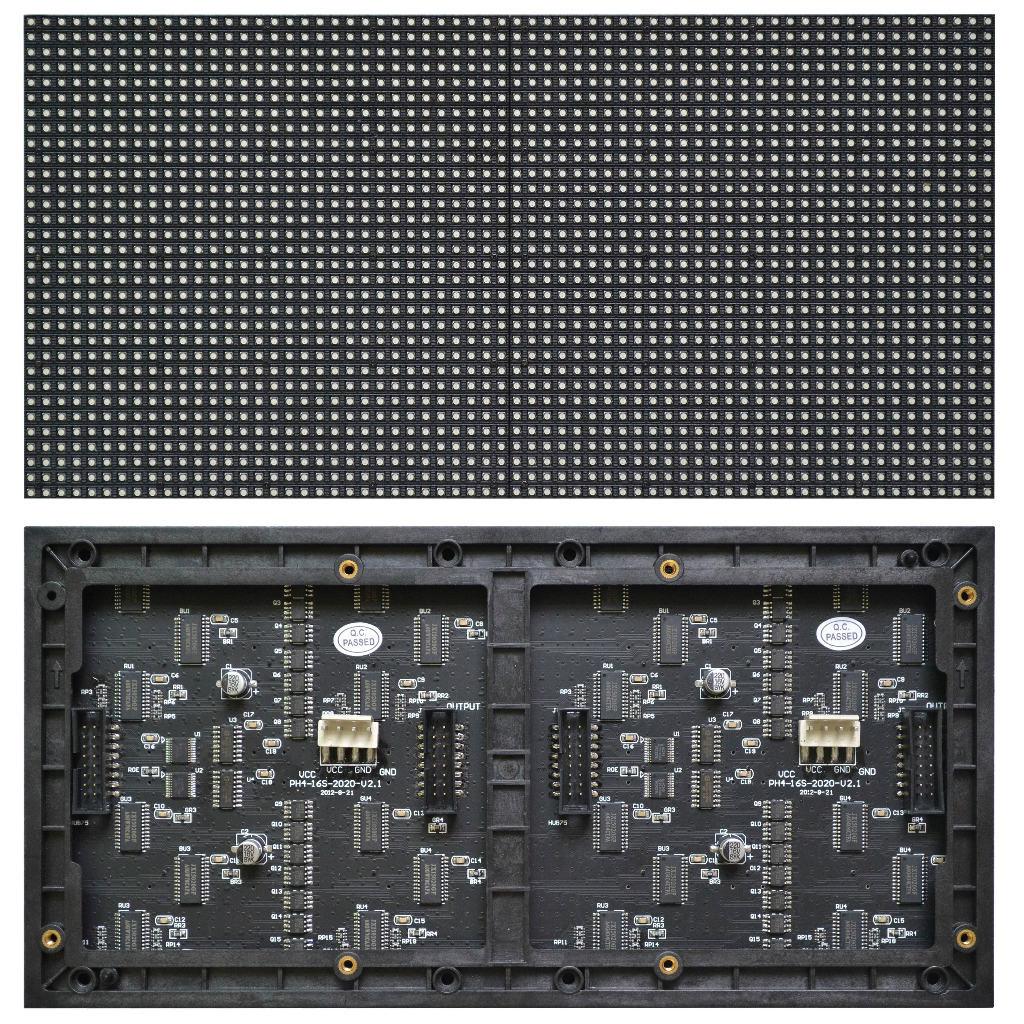

P4 Full color LED Display module – OPL-XSP0040

分类: , SKU: OPL-XSP0040

描述

ModelOPL-XSP0040
Pixel Pitch4mm
Module Size256×128mm
Cabinet Size512×512mm
Pixel Density62500 dots/㎡
Pixel Configuration1R1G1B
Module Resolution64×32
Module Power Consumption31W
Optimum Viewing Distance≥3.0m
Optimum Viewing Angle120°(H)/120°(V)
Max. Power Consumption850W/㎡
Driving Mode1/16Scan,Constant Current
Brightness of white balance>1300Nits
Grey Scale/Color16.7M
Refresh Rate≥400Hz,max2000Hz
Operating Environment-20°C ~+ 50°C 10%~90%RH
Working VoltageAC110V/220V ±10%
