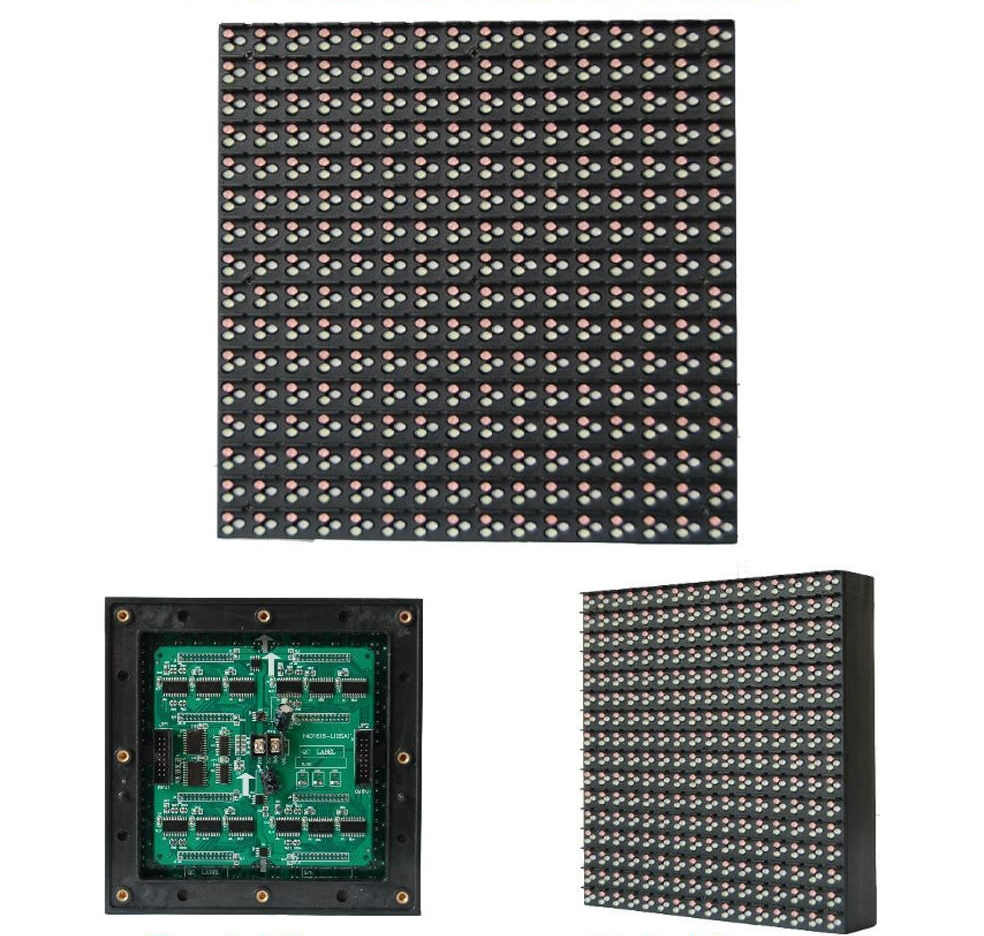

P10 Full color LED Display module – OPL-XSP0010

分类: , SKU: OPL-XSP0010

描述

ModelOPL-XSP0010
Pixel Pitch10mm
Module Size320×160mm or 160×160mm
Cabinet Size960x960mm
Pixel Density10000 dots/㎡
Pixel ConfigurationDIP346 1R1G1B
Module Resolution32×16 or 16×16
Module Power Consumption22W or 11W
Optimum Viewing Distance≥16.0m
Optimum Viewing Angle105°(H)/50°(V)
Max. Power Consumption440W/㎡(Energy efficient LED Display)
Avg. Power Consumption120W/㎡
Driving Modestatic,Constant Current
Brightness of white balance>5500Nits
Grey Scale/Color16.7M
Refresh Rate≥400Hz,max2000Hz
Operating Environment-20°C ~+ 50°C 10%~90%RH
Working VoltageAC110V/220V ±10%
