Description
- 1. Self designed single piece light fixture, exquisite apperance and excellent heat dissipation;
- 2. High quality AL6063 aluminium lamp radiator, tempered glass cover, anodizing anti acid anti corrosion lamp surface;
- 3. Professional international optical design with high efficiency optical grade lens, low light loss, good brightness;
- 4. Waterproof sturcture, no plastic fillings (moisture proof), long lifespan.
Product Specifications
| Model | OPL-XBD7808-18W | OPL-XBD7808-24W |
|---|---|---|
| Input Voltage | DC24V/AC220 | DC24V/AC220 |
| Power Rating | 18W | 24W |
| Color Temperature | Y/W | Y/W |
| Control method | External control DMX512; continuous light | External control DMX512; continuous light |
| CRI (Ra) | >80 | >80 |
| Materials | Aluminum + Tempered glass | Aluminum + Tempered glass |
| Operating Environment | -35°C~+40°C | -35°C~+40°C |
| Life Expectancy | 50000h | 50000h |
| Protection Level | IP65 | IP65 |
| Product Dimensions L*W*H (mm) | 1000*92*127 | 1000*92*127 |
| Beam angle (°) | 5°~120° Selectable | 5°~120° Selectable |

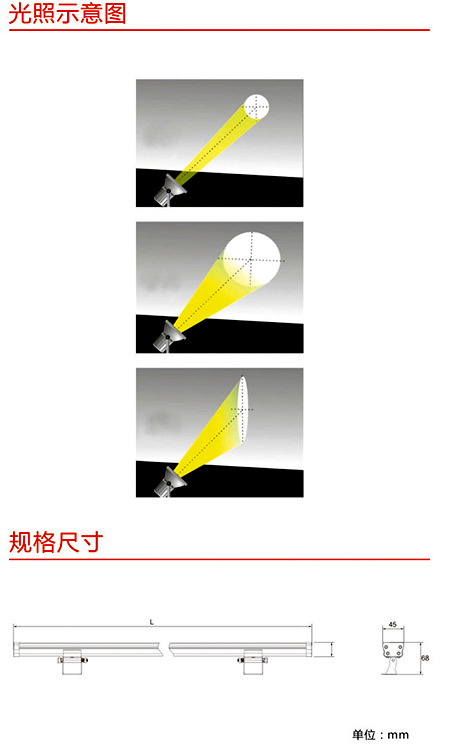

Light Distribution Ｃｕｒｖｅ
