Description
- 1. Exquisite design, unique appearance, wide lighting angle;
- 2. Die-cast aluminium lamp body + PC lampshade;
- 3. High quality LED lamp beads, high efficiency, high CRI;
- 4. Gentle and uniform light distribution;
- 5. Can add microwave sensor functionality.
Product Specifications
| Model | OPL-SDD5101-12W | OPL-SDD5101-16W | OPL-SDD5101-22W |
|---|---|---|---|
| Input Voltage | AC200-240 | AC200-240 | AC200-240 |
| Power Rating | 12W | 16W | 22W |
| Luminous Flux (lm) | 900 | 1200 | 1650 |
| CRI (Ra) | >80 | >80 | >80 |
| CCT (K) | 3000K/4000K/6500K | 3000K/4000K/6500K | 3000K/4000K/6500K |
| Power Factor | >0.9 | >0.9 | >0.9 |
| Materials | PC+PMMA | PC+PMMA | PC+PMMA |
| Product Dimensions D*H (mm) | 300*95 | 350*105 | 410*110 |
| Beam angle (°) | >120° | >120° | >120° |
| Installation Method | Ceiling | Ceiling | Ceiling |
| Single box size (mm) | 310*310*100 | 360*360*110 | 420*420*115 |

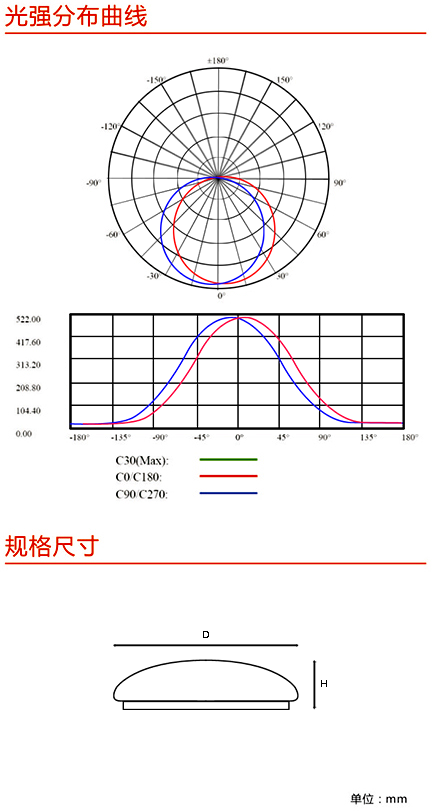

Light Distribution Ｃｕｒｖｅ
