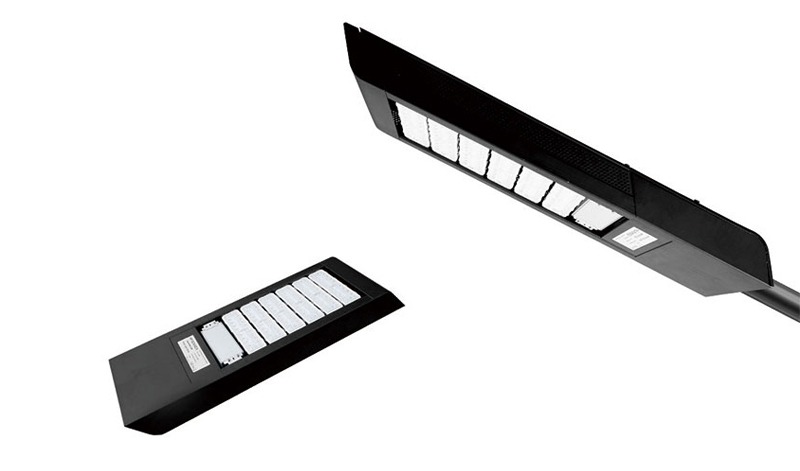

120W-300W LED Street Light

TypeLED Street Light
ModelOPL-LD7113
CCT3000K/4000K/5000K/5700K
Luminous Efficiency100
Categories: , SKU: OPL-LD7113 Tag:

Description

  1. 1. Separate power supply cavity and light source cavity design;
  2. 2. Modular technology, tool free field maintenance;
  3. 3. Uses the thermal honeycomb principle and full structural cooling technology to achieve superior heat dissipation;
  4. 4. IP68 rated, dust and waterproof;
  5. 5. non wire eutectic welding, avoids disconnection from broken wires;
  6. 6. One damaged light bead won’t affect other light beads current;
  7. 7. Intelligent constant current driver technology, overcoming the power supply service life bottleneck;
  8. 8. Ergonomic light distribution, achieves same intensity and brightness road lighting effect;
  9. 9. Customisable all power level solution.

Product Specifications

ModelOPL-LD7113-120WOPL-LD7113-180WOPL-LD7113-240WOPL-LD7113-300W
Operating VoltageAC100-277AC100-277AC100-277AC100-277
Power Efficiency0.910.910.910.91
CRI (Ra)>70>70>70>70
CCT (K)3000K/4000K/5000K/5700K3000K/4000K/5000K/5700K3000K/4000K/5000K/5700K3000K/4000K/5000K/5700K
Power Factor0.950.950.950.95
Junction Temperature<80°C<80°C<80°C<80°C
MaterialsAluminum alloyAluminum alloyAluminum alloyAluminum alloy
Operating Environment-40°C ~+ 50°C 10%~90%RH-40°C ~+ 50°C 10%~90%RH-40°C ~+ 50°C 10%~90%RH-40°C ~+ 50°C 10%~90%RH
Life Expectancy>50000h>50000h>50000h>50000h
Light DistributionBatwing distribution; Equal brightness distributionBatwing distribution; Equal brightness distributionBatwing distribution; Equal brightness distributionBatwing distribution; Equal brightness distribution
Light SourcePhilips LumiledsPhilips LumiledsPhilips LumiledsPhilips Lumileds
Protection LevelIP67IP67IP67IP67
System Power (W)120180240300
Luminous efficiency (lm/w)100100100100
Initial Luminous Flux (lm)12000180002400030000
Product Dimensions L*W*H (mm)625*330*154705*330*154785*330*154865*330*154

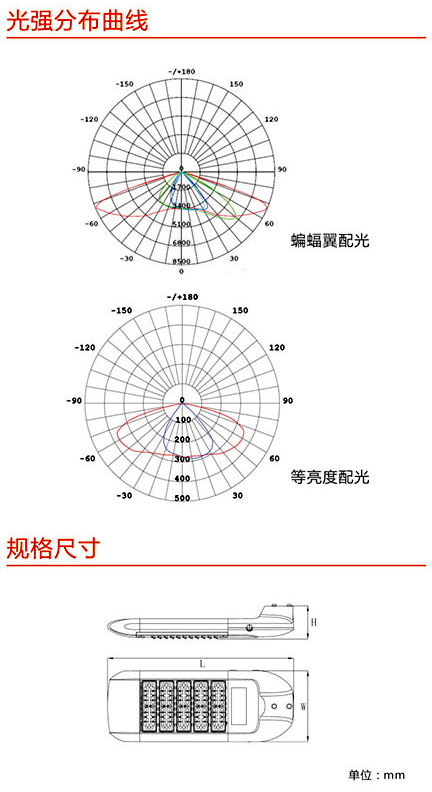

Light Distribution Curve
